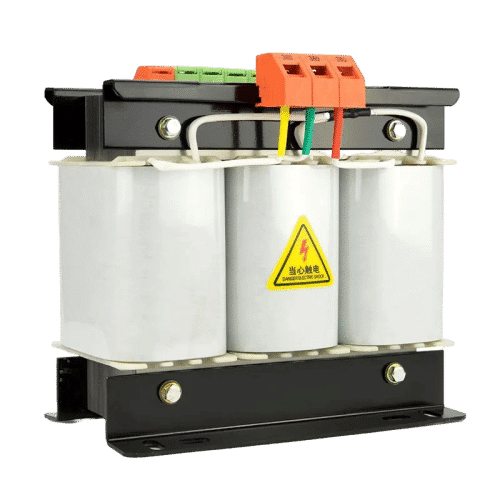

3kva transformer
Shuogong Power is a leading transformer manufacturer and supplier in China. Our 3KVA transformers are economical. It can convert the most complete voltage such as 480V to 120V, 240V, etc. There are two types of 3KVA isolation transformer and autotransformer. Whether you need a single phase 3KVA transformer or a three phase 3KVA transformer, we can meet your needs well. Contact us for a price or quote for a 3KVA transformer.
3KVA transformer related products
3KVA Transformer Technical Parameters
3KVA transformer for sale. Rated capacity 3kVA, input voltage 380V, input current 8A, output voltage 220V or 200V, output current 2.6A or 2.8A, frequency 50/60Hz.
There are two types of 3KVA autotransformer and 3KVA isolation transformer. 3KV single-phase transformers and three-phase transformers are also available.
Three-phase transformer application:
Three-phase transformers can be used in CNC machine tools, SMT, printing machines, EDM machines, automatic plug-in machines, precision measuring equipment, laser cutting machines, plastic molding machines, medical monitoring systems, PCB drilling machines, laboratory equipment, military instrument control centers etc.
Single Phase Transformer Applications:
- step-down localized power distribution
- television sets to regulate voltage
- low voltage electronic devices
- step-up power in home inverters
- non-urban areas where electrical demand is lower
- commercial and residential lighting and heating equipment
| Model | 3KVA |
| Phase | 3-Phase or single phase |
| Capacity | 3 kVA |
| Input Voltage | AC 380V |
| Input Current | 1.5A |
| Output Voltage (Optional) | AC 220V, 200V |
| Output Current | 2.6A (220V), 2.8A (200V) |
| Frequency | 50Hz / 60Hz |
| Winding Material (Optional) | Aluminum Wire, Copper Wire |
| Cooling Method | Self-Cooling or Wind-Cooling |
| Working Efficiency | ≥98% |
| Waveform Distortion | No distortion (compared with output wave) |
| Insulation Resistance | ≥ 150MΩ |
| Wiring | Yn0 |
| Electrical Strength | Power frequency sinusoidal voltage 3000V lasts for 1 minute, no breakdown and flicker |
| Overload Protection | Can withstand instantaneous 2 times the rated current |
| Moisture-Proof Type (Optional) | Open type, sealed type |
| Ambient Temperature | -20℃ ~ +45℃ |
| Altitude | ≤ 2500m |
| Relative Humidity | 0-95% |
| Noise | ≤35dB (within 1 meter) |
| Design Service Life | 20 years |
| Use Environment | No explosion, rain and snow corrosion place, and no gas and conductive dust in the medium that can corrode metal and damage insulation |
| Weight (Enclosure Included) | Three phase auto: 23 kg |
| Dimension | Three phase auto: 230*130*195 mm |
Vido
Why Choose Us?
SHUOGONG is the best manufacturer of transformers and voltage regulators in China, you can choose standard transformer products or custom-made transformers and voltage regulators for special voltages.
Best Industry Leaders
A manufacturer of transformers and voltage regulators with 16 years of production experience.
Be your transformer factory
Accept special customization and OEM service.
Professional Certification
Strict quality management, through CE certification.
3KVA Transformer Buying Guide
content
1. What is a 3kva transformer?
A 3KV transformer refers to a transformer with a total power of up to 3KV. Applicable to equipment or electrical appliances with a total power of 3KV.
3KVA transformers have the following categories:
- Single phase 3KVA transformer
- Three-phase 3KVA transformer
- 3KVA isolation transformer
- 3KVA Autotransformer
2. How much is the price of 3KV transformer
Listed below are some of the 3KV transformer prices currently on the market. This does not mean the price of shuogong, if you need to buy a 3KVA transformer, you can contact us to get a preferential quotation.
| Items | Price | Capacity |
| 3 kVA single phase isolation transformer price | $1,036.45 | 208V to 240V |
| 3 kVA three-phase isolation transformer price | $1,424.21 | 400V to 208V |
| 3 kVA three-phase autotransformer price | $1210.31 | 380V to 220V |
3. What voltages can a 3KVA transformer convert?
The 3KVA transformer made by Shuogong can convert any voltage. No matter what input and output voltage you need, we can provide the best products.
We are manufacturer and we can customize 3KV transformers of any voltage according to customer needs.
For example 3kva transformer 480v to 240v, 3kva transformer 120/240
4. What are the 3KVA manufacturers ？
There are many transformer manufacturers all over the world, but transformers do not seem to have much brand effect. Common 3KV transformer manufacturers include Schneider and so on.
If you are choosing the right 3KV transformer manufacturer and supplier, Shuogong is a good choice. We have a strong R&D and manufacturing team to provide customers with affordable transformers through the integration and optimization of the supply chain.
5. How to choose a 3KVA transformer?
First of all, the load power you want for the 3KV token is heavy. If you have determined the power you need, then you need to determine your voltage.
Different countries have different voltages. So we must determine our own voltage, and then contact us for a quote.
