5KVA isolation transformer 3 phase step down

5KVA isolation transformer 3 phase step down

5KVA isolation transformers are sold at manufacturer price.

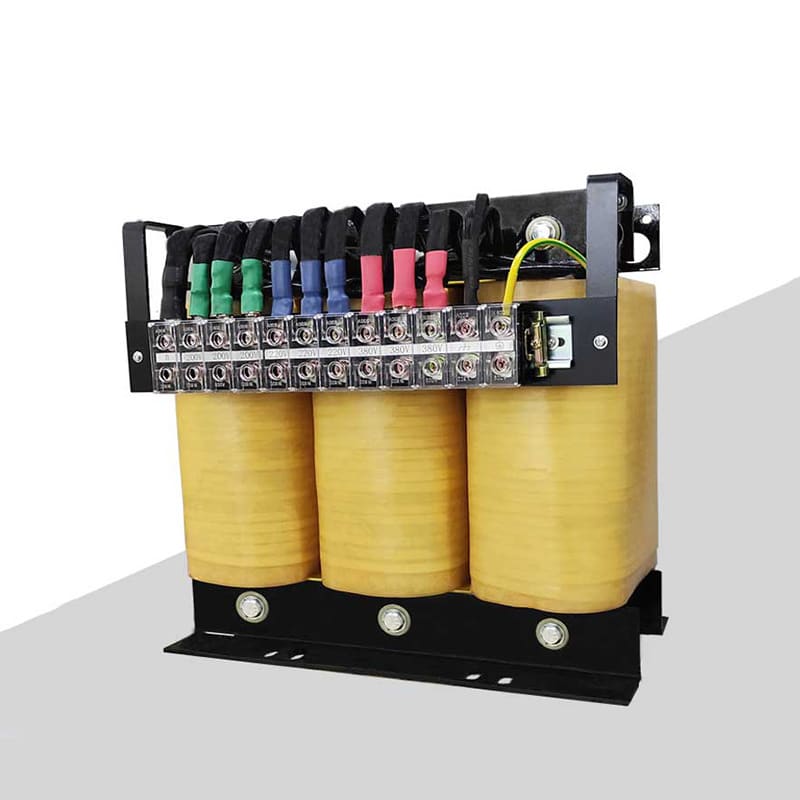

This 5KVA 3-phase isolation transformer has a total power of 5000VA, and its main function is to step down, which can step down the input voltage to the usable range output.

3 phase 5 kVA isolation transformer is designed to step down/ up the voltage 480V to 400V, and widely used in various power supply sites with frequency 50Hz or 60Hz.

High quality 5KVA 3-phase isolation transformers are manufactured and supplied by Shuogong Power, a leading transformer company in China.

We are a professional dry-type transformer manufacturer dedicated to solving voltage problems for customers around the world.

This 5KVA isolation transformer is a dry-type transformer, its main function is to step down, it can step down the input voltage to the usable range output, for example, step down the input voltage 480V to 120V, step down 480V to 240V, step down 380V to 220V/200V.

Datasheet:

Basics Model SGB-5KVA
Phase 3 phase
Capacity 5 kVA
Technical Parameters Primary Voltage 380V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/270V/ 400V/ 415V/ 480V)
Secondary Voltage 200V/220V (Optional: 120V/ 190V/ 208V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
Frequency 50Hz / 60 Hz
Winding Material Aluminium/Copper wire (Optional)
Work Efficiency ≥95%
Insulation Resistance ≥50 MΩ
Electrical Strength 3000V AC/1 min
Noise <35-65dB (1 meter)
Insulation Grade H level
Wiring Mode Dyn11
Cooling Mode Dry type air cooling
Overload Capacity Allow more than 1.2 times rated load to work for up to 4 hours
Enclosure Protection Grade IP 24
Certificate CE
Warranty 12 months
Working Environment Temperature -15℃~+40℃
Humidity ≤90%RH, without condensation
Altitude <1000m, non corrosive gas and conductive dust

Note:

Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients’ requirements.

5KVA 3 phase isolation transformer price:

The current retail price of 5KVA three-phase transformers on the market is usually $1500-1800.

Here you will get exclusive deals from 3 phase transformer manufacturers.

Contact us today for a discounted price on 5KVA 3 phase isolation transformers.

The following are the prices of 5KVA three-phase isolation transformers currently on the market, for your reference only.

Items Price  Capacity source
5kVA 3 phase isolation transformer price $1776.92 480V to 240V Ato
5kVA 3 phase isolation transformer price $1349.58 480V to 120V peacosupport
5kVA three phase isolation transformer price $1724.3 380V to 220V Ebay

The 5kVA isolation transformer is high quality, three phase, 480V primary voltage and 400V secondary voltage, manufactured direct sale.

Fully compliant with reduced low voltage regulations, is a non-ventilated isolation transformer rated for hazardous locations as well as harsh industrial environments.

Benefits of using isolation transformers:

Isolation transformers mainly have the following advantages:

  • Good safety: The biggest advantage offered by isolation transformers is increased safety. This is especially important in settings such as hospitals or nursing homes where expensive life support equipment can be damaged.
  • Reduce surges: Another advantage of isolation transformers is that they reduce surges. Since the DC signal from the power source is isolated, electrical equipment can run smoothly without the risk of power surges. This means that even in the event of a power failure, the device can function normally.
  • Low noise: The isolation transformer has the advantage of lower noise than ordinary transformers.
  • Better Power Quality: When a user uses an isolation transformer, there is usually a better overall power quality. Faraday shields also help improve efficiency because they reduce the likelihood of current leakage. As a result, important electrical equipment can operate at an optimized level.
